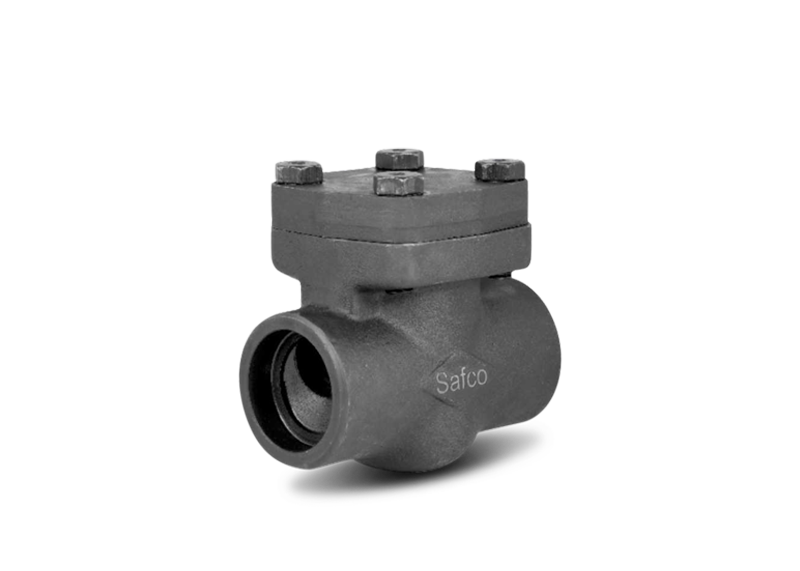

Check Valves - Forged Asme Class - 800, 1500 & 2500

Check Valves - Forged Asme Class - 800, 1500 & 2500

SAFCO offers a premium range of Forged Steel Check Valves designed to meet the rigorous demands of high-pressure applications across industries. Manufactured in compliance with ASME Class 800, 1500, and 2500, our check valves ensure leak-tight performance, enhanced durability, and superior reliability under critical service conditions.

  • Standards : ISO 15761
  • Range : 1/2” to 2” (15 mm to 50 mm) Class 800,1500 & 2500
  • Materials : A 105, LF2,F304L, F316L
Get A Quote

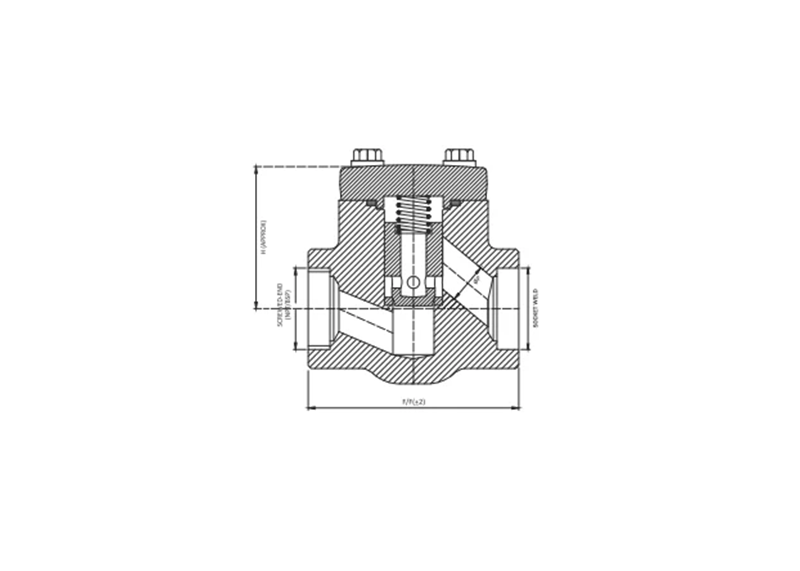

Class-800#
SIZES F/F ØP H WT
15 mm 87 9.5 53 1.0 kg
20 mm 92 12.7 56 1.3 kg
25 mm 106 17.5 66 2.2 kg
32 mm 127 23.8 86 4.9 kg
40 mm 127 28.6 86 4.7 kg
50 mm 142 36.5 104 8.2 kg
Class-1500#
SIZES F/F ØP H WT
15 mm 92 8.0 56 1.5 kg
20 mm 106 9.0 66 2.5 kg
25 mm 127 14.0 86 5.6 kg
32 mm 142 20.0 104 5.4 kg
40 mm 142 25.0 104 9.4 kg
Class-2500#
SIZES F/F ØP H WT
15 mm 106 7.0 66 2.9 kg
20 mm 127 12.5 86 6.4 kg
25 mm 142 15.5 104 10.8 kg
