Gate Valves - Forged Asme Class - 800, 1500 & 2500

Gate Valves - Forged Asme Class - 800, 1500 & 2500

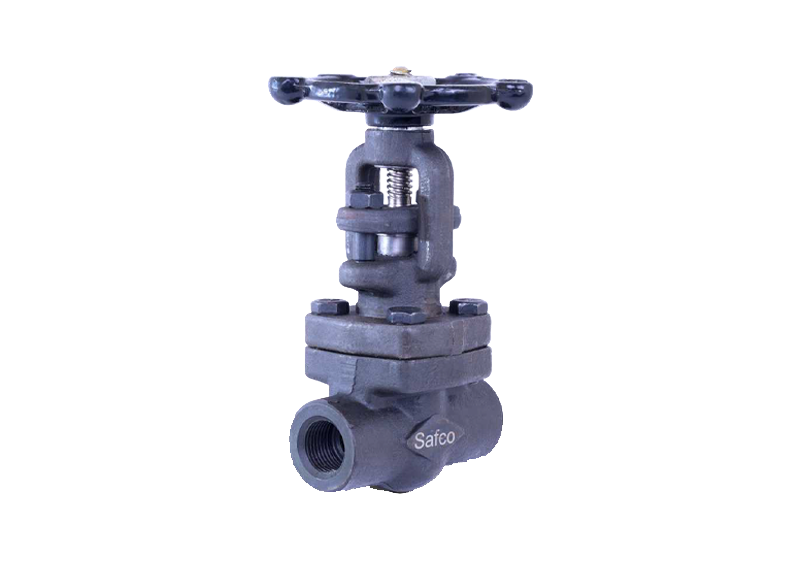

SAFCO’s Forged Gate Valves in ASME Class 800, 1500 & 2500 are expertly designed to deliver reliable shut-off and flow control in demanding high-pressure environments. Engineered to the highest standards, these valves are ideal for applications across oil & gas, petrochemical, power generation, and other critical process industries.

  • Standards : API 602
  • Range : 1/2” to 2” (15 mm to 50 mm) Class 800,1500 & 2500
  • Materials : A 105, LF2, F304L,F316L
Get A Quote
Class-800#

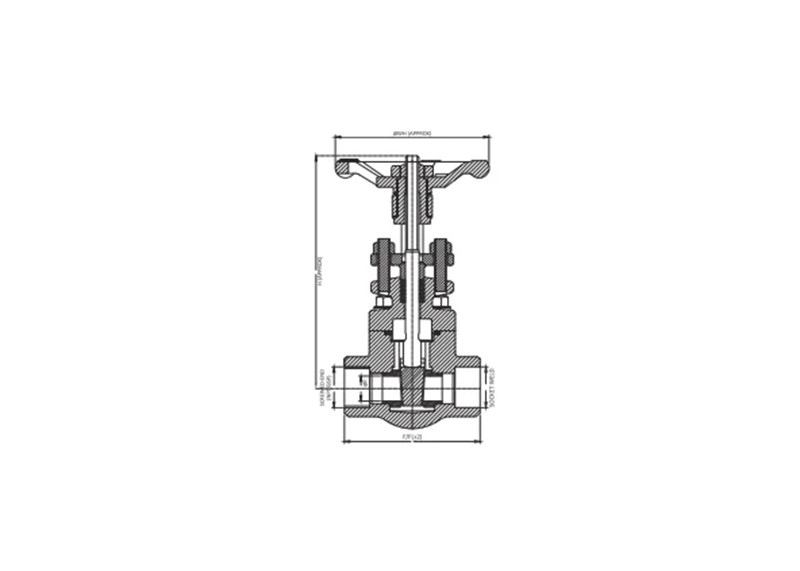

SIZES F/F ØP H-O H-C ØWH WT
15 mm 87 9.5 152 130 86 1.6 k.g.
20 mm 92 12.7 158 133 86 1.9 k.g.
25 mm 106 17.5 189 155 116 3.1 k.g.
32 mm 127 23.8 239 200 150 6.3 k.g.
40 mm 127 28.6 239 200 150 6.1 k.g.
50 mm 142 36.5 288 235 150 9.8 k.g.
Class-1500#
SIZES F/F ØP H-O H-C ØWH WT
15 mm 92 9.5 158 133 86 2.2 k.g.
20 mm 92 12.7 158 133 86 1.9 k.g.
25 mm 106 12.7 189 155 116 3.6 k.g.
25 mm 127 15.9 239 200 150 7.3 k.g.
32 mm 142 22.2 288 235 150 7.0 k.g.
40 mm 142 27.0 288 235 150 11.3 k.g.
Class-2500#
SIZES F/F ØP H-O H-C ØWH WT
15 mm 106 7.0 186 155 116 4.1 k.g.
20 mm 127 12.5 239 200 150 8.4 k.g.
25 mm 142 15.5 288 235 150 13.0 k.g.
