Gate Valves - Forged Flanged End Asme Class - 150, 300 & 600

Gate Valves - Forged Flanged End Asme Class - 150, 300 & 600

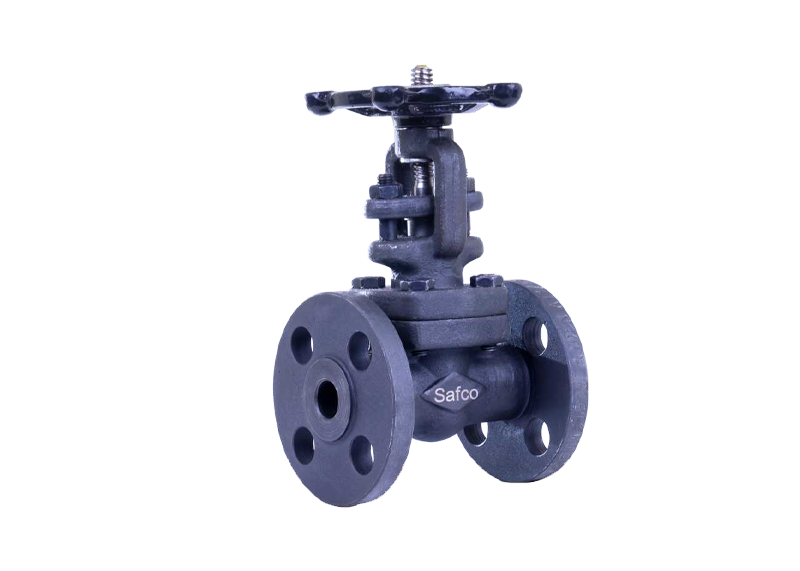

SAFCO's Forged Flanged End Gate Valves are designed to offer robust shut-off capabilities in demanding flow control systems. Manufactured to ASME Class 150, 300 & 600 standards, these valves deliver exceptional performance, durability, and leak-tight sealing across a wide range of industrial applications.

  • Standards : API 602
  • Range : 1/2” to 2” (15 mm to 50 mm) Class 150,300 & 600
  • Materials : A 105, LF2, F304L,F316L
Get A Quote
Class-150#
SIZES F/F ØF FT ØW WT
15 mm 108 90 9.6 60.3 2.6 k.g.
20 mm 117 100 11.2 69.9 3.5 k.g.
25 mm 127 110 12.7 79.4 5.1 k.g.
32 mm 140 115 14.3 88.9 8.7 k.g.
40 mm 165 125 15.9 98.4 9.3 k.g.
50 mm 178 150 17.5 120.7 15.0 k.g.
Class-300#
SIZES F/F ØF FT ØW WT
15 mm 140 95 12.7 66.7 3.2 kg
20 mm 152 115 14.3 82.6 4.7 kg
25 mm 165 125 15.9 88.9 6.5 kg
32 mm 178 135 17.5 98.5 10.5 kg
40 mm 190 155 19.1 114.3 12.1 kg
50 mm 216 165 20.7 127 172.2 kg
Class-600#
SIZES F/F ØF FT ØW WT
15 mm 165 95 14.3 66.7 3.6 kg
20 mm 190 115 15.9 82.6 5.1 kg
25 mm 216 125 17.5 88.9 7.3 kg
32 mm 229 135 20.7 98.4 11.5 kg
40 mm 241 155 22.3 114.3 13.7 kg
50 mm 292 165 25.4 127 20.0 kg
