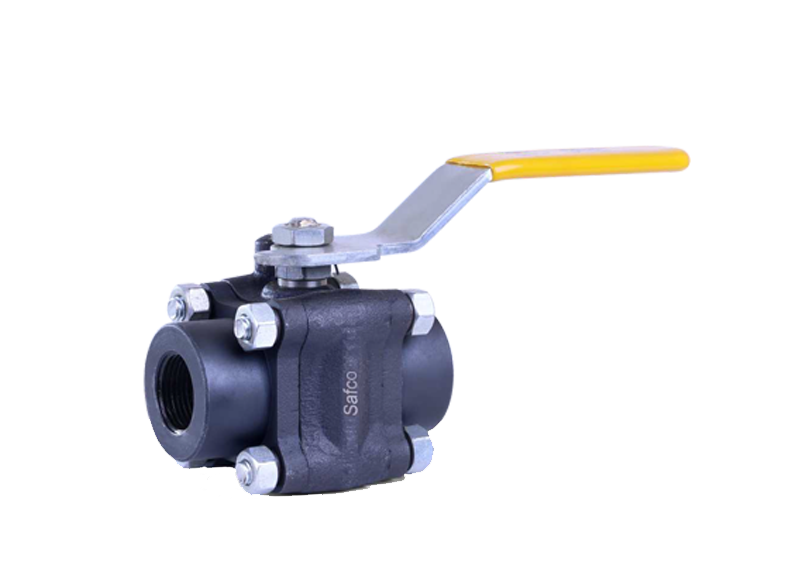

Three-Piece ball valves-Full bore Asme class-800&1500

Three-Piece ball valves-Full bore Asme class-800&1500

Engineered for reliability and performance in demanding industrial applications, SAFCO’s Three-Piece Full Bore Ball Valves are designed to meet stringent ASME Class 800 & 1500 standards. With a robust three-piece construction, these valves offer enhanced strength, ease of maintenance, and exceptional flow capacity, making them ideal for high-pressure and high-temperature environments.

  • Standards : ISO 17292
  • Range : 1/4” to 2” (8 mm to 50 mm Class 150 to 1500)
  • Materials : A 105, LF2, F304/F304L, F316/F316L
Get A Quote

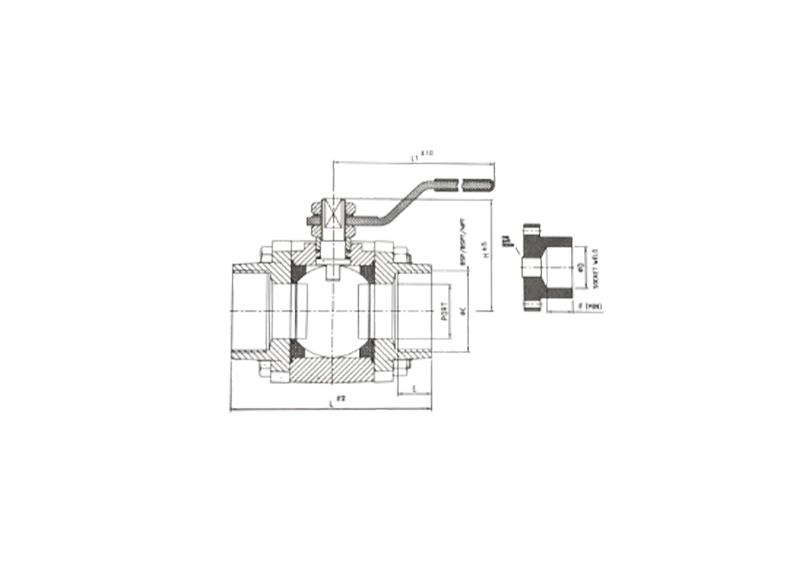

SIZE PORT L H L1 QC E QD MIN. QD MAX. F(MIN.)
MM INCH
15 1/2" 12.5 76 42 130 1/2" 14 21.72 22.2 13
20 3/4" 18.5 93 50 145 3/4" 17 27.2 27.4 13
15 1" 25.0 100 55 145 1" 19 33.9 34.1 13
15 1.14" 32.0 113 75 218 1.1/4" 17 42.7 42.9 13
15 1.1/2" 38.0 123 80 218 1.1/2" 17 48.8 49.0 13
15 2" 50.0 129 90 218 2" 17 60.8 61.0 13
