Three-Piece ball valves-Full bore Asme class-800&1500

Three-Piece ball valves-Full bore Asme class-800&1500

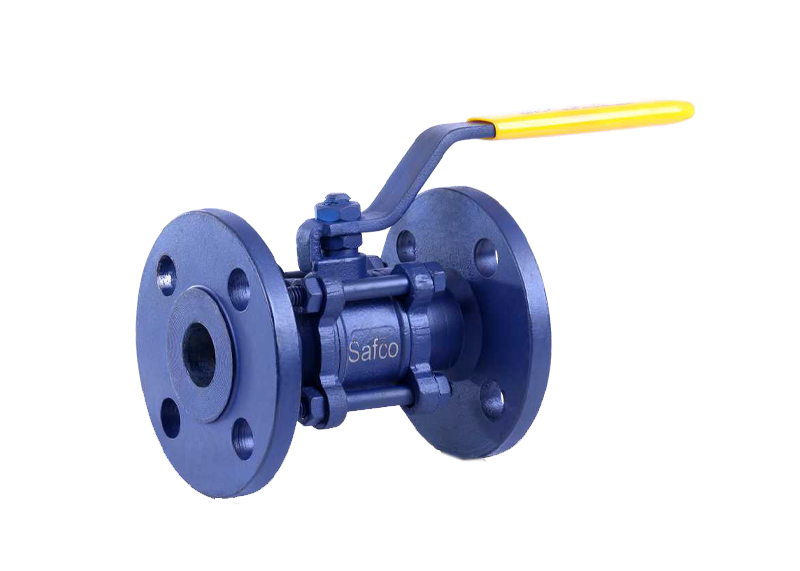

SAFCO’s Three-Piece Full Bore Ball Valves, built to ASME Class 800 & 1500 standards, are engineered for high-performance in demanding industrial applications. Designed for ease of maintenance, superior durability, and reliable shutoff performance, these valves are ideal for use in oil & gas, petrochemical, power generation, and other critical services.

  • Standards : ISO 17292
  • Range : 1/2” to 2” (15 mm to 50 mm Class 150 to 600)
  • Materials : A 105, LF2, F304/F304L, F316/F316L
Get A Quote

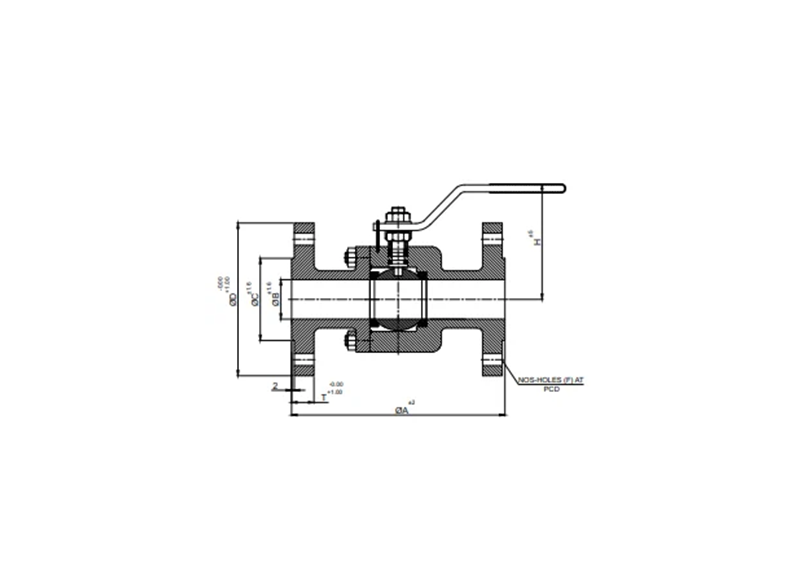

Technical Data For 150 Class 2PC BV
SIZE A ØB ØC ØD T PCD F H
MM INCH
15 1/2" 108 12.5 35.0 90.0 8.0 60.3 4*Ø16 65.0
20 3/4" 118 19.0 43.0 100 10.0 70.0 4*Ø16 65.0
25 1" 127 25.0 51.0 110 11.6 79.4 4*Ø16 75.0
40 1.1/2" 165 38.0 73.0 125 14.7 98.4 4*Ø16 90.0
50 2" 178 50.0 92.0 150 16.3 120.7 4*Ø19 105
