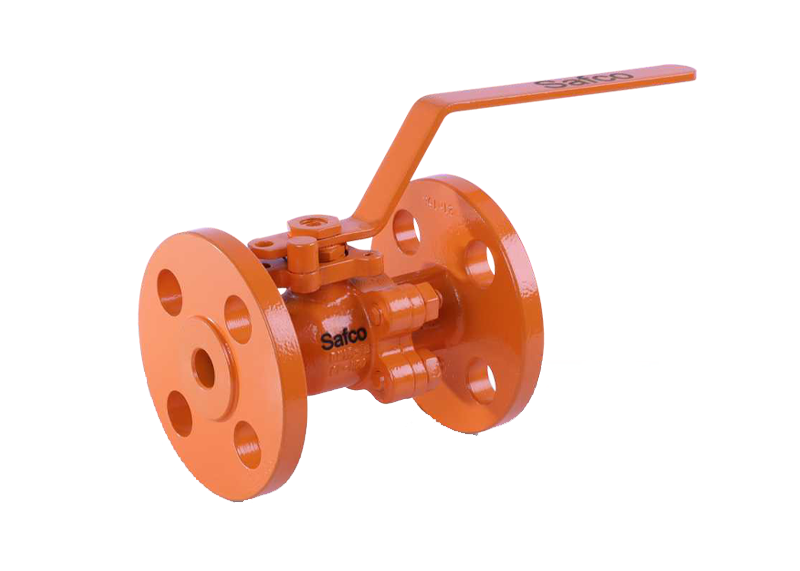

SAFCO’s Two-Piece Full Bore Ball Valves are engineered for durability, reliability, and performance in a wide range of industrial applications. Designed in compliance with ASME Class 150, 300, and 600 standards, these valves offer robust flow control and are ideal for demanding environments.

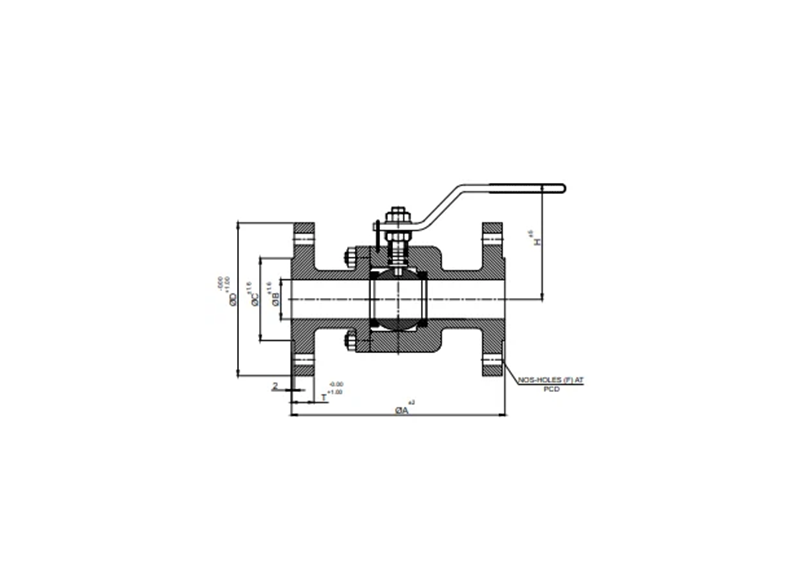

| Technical Data For 150 Class 2PC BV | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| SIZE | A | ØB | ØC | ØD | T | PCD | F | H | |
| MM | INCH | ||||||||
| 15 | 1/2" | 108 | 12.5 | 35.0 | 90.0 | 8.0 | 60.3 | 4*Ø16 | 65.0 |
| 20 | 3/4" | 118 | 19.0 | 43.0 | 100 | 10.0 | 70.0 | 4*Ø16 | 65.0 |
| 25 | 1" | 127 | 25.0 | 51.0 | 110 | 11.6 | 79.4 | 4*Ø16 | 75.0 |
| 40 | 1.1/2" | 165 | 38.0 | 73.0 | 125 | 14.7 | 98.4 | 4*Ø16 | 90.0 |
| 50 | 2" | 178 | 50.0 | 92.0 | 150 | 16.3 | 120.7 | 4*Ø19 | 105 |
